1800LE Wired CareView Brand 17*17 Wired Flat Panel Detector Medical X-Ray Highly Detailed Diagnostic Imaging For Digital Radiography
Model: PSKU0114
1. Features:1) Direct Deposited Csl 1717 Active Area2) Full-Field Automatic Exposure Detection Technology3) Highly detailed diagnostic imaging4) 140um pixel design 73% MTF @3Lp/mm5) Panel: Amorphous Silicon Active TFT/Diode Arra...
Product Parameters
| Parameter | Description |
|---|---|
| Product Name | 1800LE Wired CareView Brand 17*17 Wired Flat Panel Detector Medical X-Ray Highly Detailed Diagnostic Imaging For Digital Radiography |
| SKU | PSKU0114 |
| Size | 2120*965*450-740mm |
| Packing Size of set | 2090*1100*430mm (1 set per carton) |
| Loading capacity | 250kg / 551lbs |
Product Description
1. Features:
1) Direct Deposited Csl 1717 Active Area
2) Full-Field Automatic Exposure Detection Technology

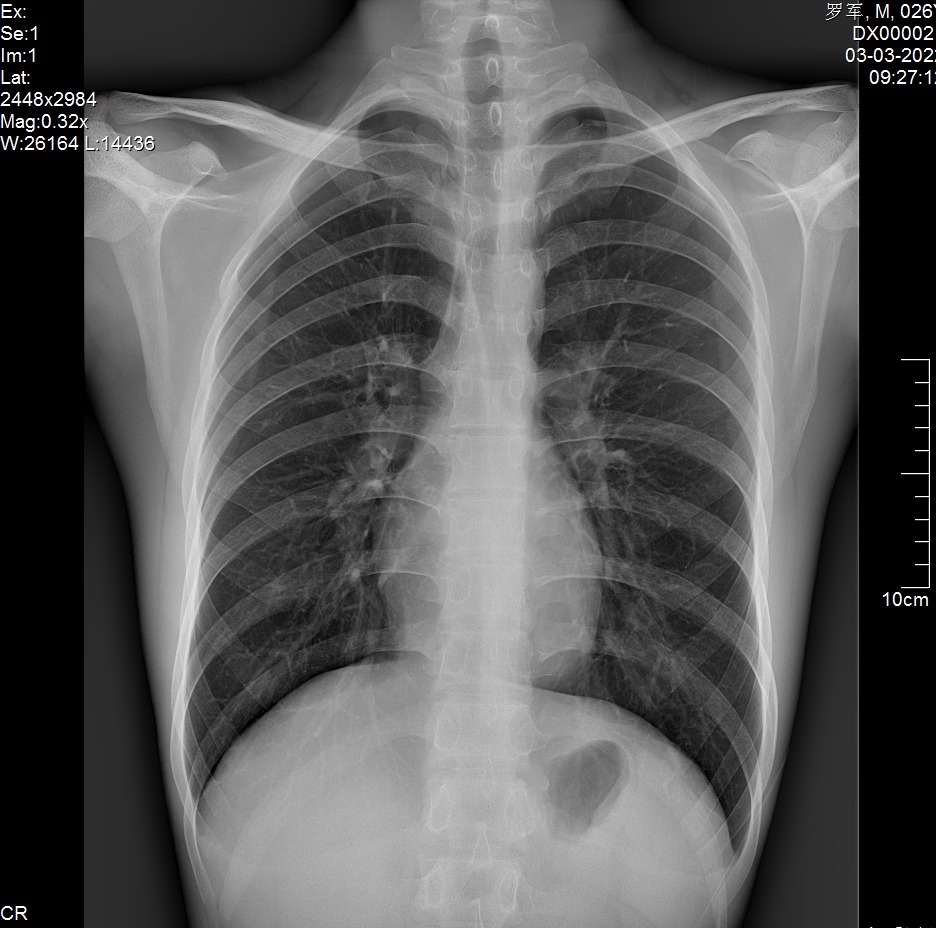

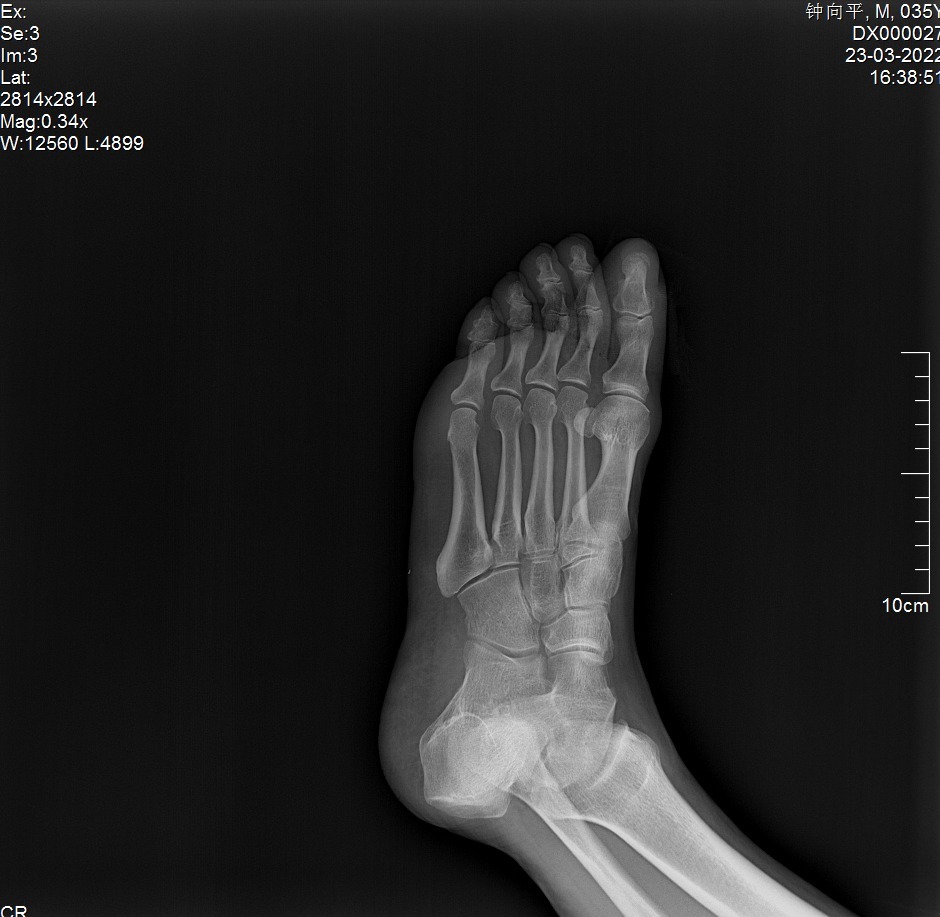

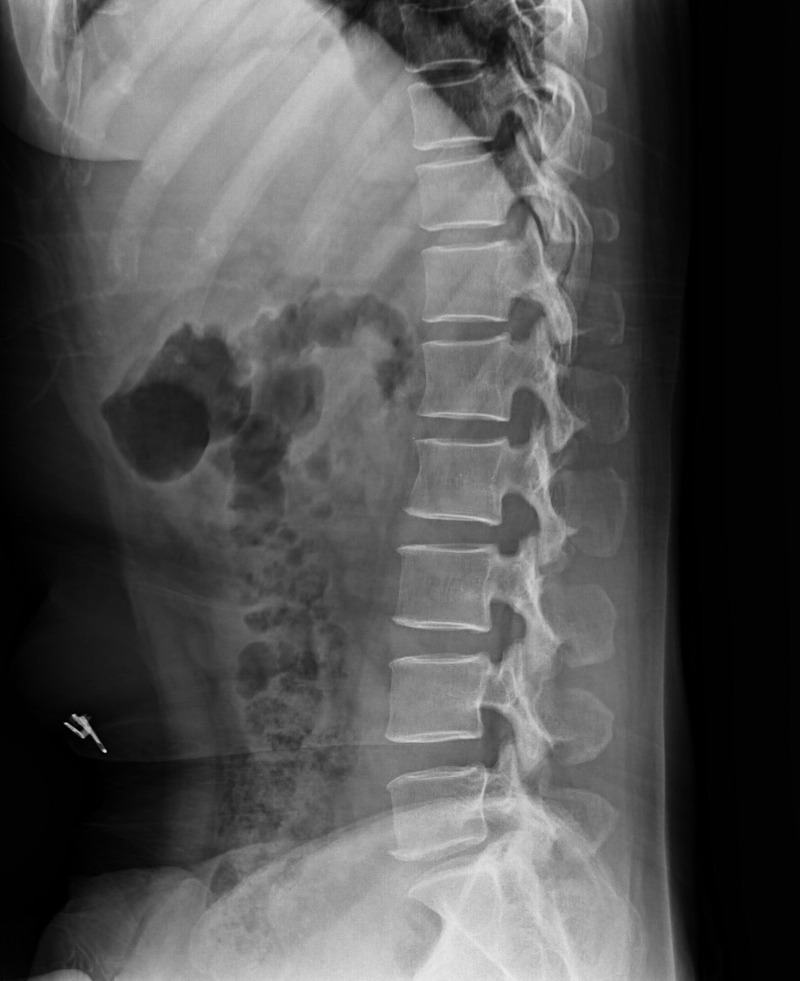

3) Highly detailed diagnostic imaging
4) 140um pixel design 73% MTF @3Lp/mm
5) Panel: Amorphous Silicon Active TFT/Diode Array
6) Active Area: 430mmx430 mm
7) lmage Matrix Size: 3072×3072
8) Pixel Pitch: 140 μm
9) A/D Conversion: 16 bits
10) Dynamic Range: >80 dB
11) Data Interface: Gigabit Ethernet
12) Acquisition Time: 2s-4s
13) Trigger Type: AED/Manual Sync/Soft Sync/External Sync
