DMU25 Portable Color Doppler Ultrasonic Diagnostic System

Model: PSKU0025

1.Efficient and fast Workflow:1)Multiple user-defined programming buttons2)One-key Automatic Optimization Technology 3)One-key operation flow, quick switching and easy to use 4)Visualize user-defined presets function (QSave) 5)Met...

Share:

Facebook Twitter Pinterest WhatsApp Email
Add to Inquiry

Product Parameters

Parameter Description
Product Name DMU25 Portable Color Doppler Ultrasonic Diagnostic System
SKU PSKU0025
Size 2120*965*450-740mm
Packing Size of set 2090*1100*430mm (1 set per carton)
Loading capacity 250kg / 551lbs

Product Description

1.Efficient and fast Workflow:

1)Multiple user-defined programming buttons

2)One-key Automatic Optimization Technology
3)One-key operation flow, quick switching and easy to use
4)Visualize user-defined presets function (QSave)
5)Metadata and image postprocessing
6)DICOM 3.0
7)USB 3.0 port, built-in DVD, make transmission more convenient
8)Thumbnail clipboard – easy to review the images and videos
2.Clinical Applications:
1)Obstetrics
2)Gynecology
3)Urology
4)Cardiology
5)Pediatric
6)Small Parts
7)Blood Vessel
3.Imaging modes：

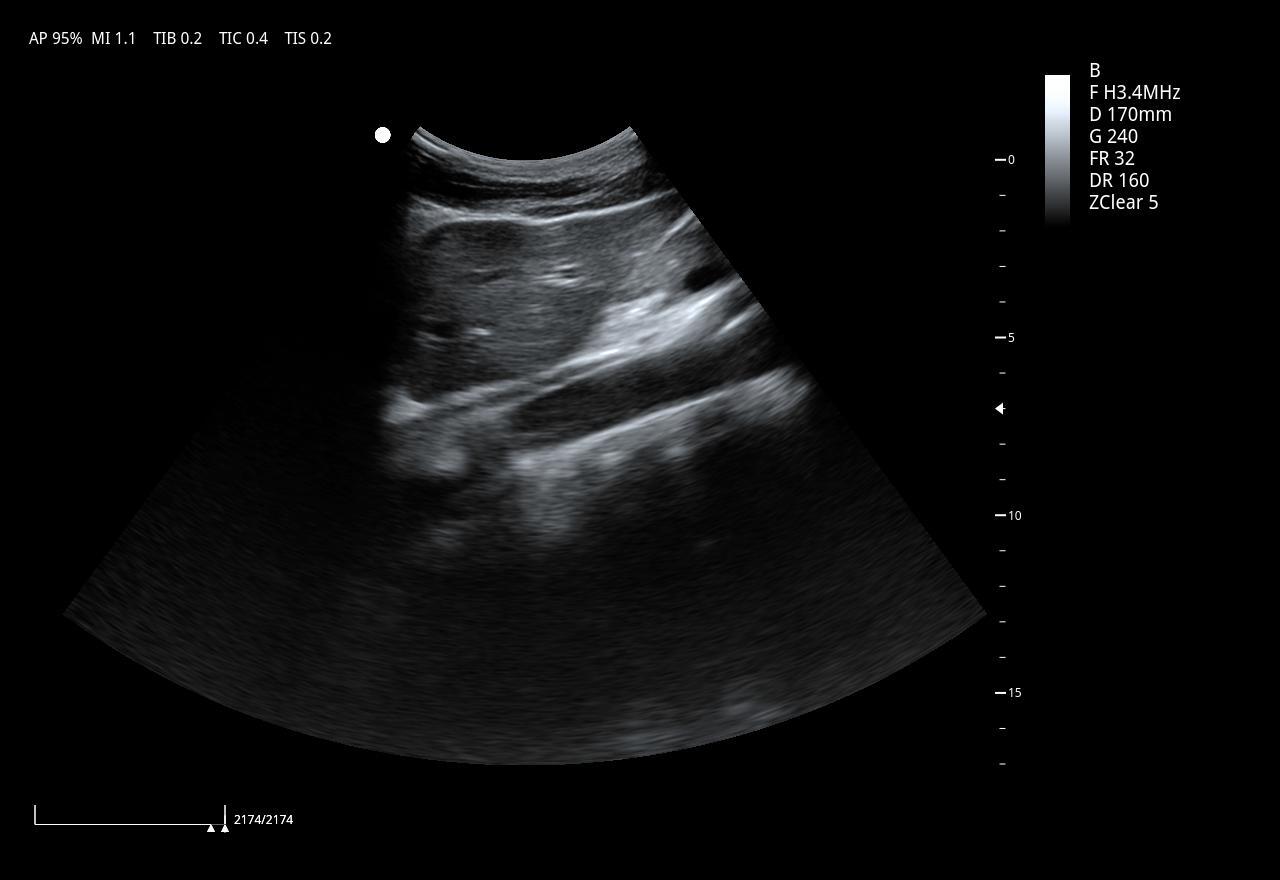

1)B steer
2)2B/4B-Mode
3)M-Mode
4)B/M-Mode

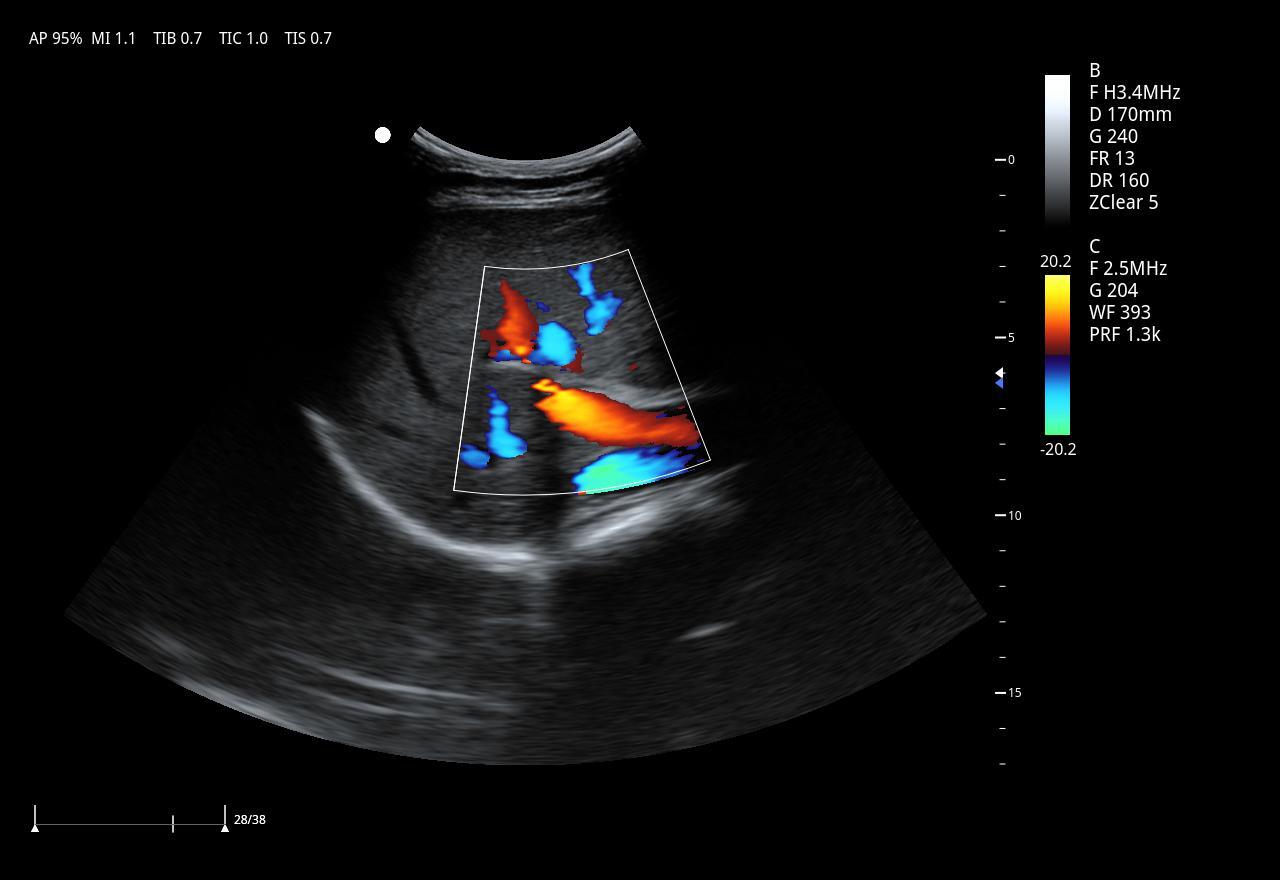

5)CDFI – Mode
4.Standard features：
1)Extended imaging (Efov)
2)Tissue Specific Imaging (TSI)
3)Tissue Harmonic Imaging (THI)
4)Speckle Reduction Imaging (SRI)
Spatial Composite Imaging (SCI)
5.Electrical power：
1)AC adapter Input
– Voltage: 100-240V~
– Frequency: 50/60Hz
– Output Voltage: 19V±1
– Output electric current: 5.8A
2) Lithium Battery
– Battery Capacity: 10000mA
– Output Voltage: 14.4V
6.Operation Environment：
1)Ambient temperature: 5℃~+40℃
2)Relative humidity: 25%~85%
3)Atmospheric pressure: 70kpa ~ 106kpa
7.Storage &Transport Environment：
1)Ambient temperature: -20℃~+55℃
2)Relative humidity: 10%~95%
3)Atmospheric pressure: 50kpa-106kpa
