Mindray VENTUS 7 Veterinary Diagnostic Ultrasound System Precision and Portability Ultrasound Scanner

Model: PSKU0063

1.Specifications:1)180-degree articulating monitor arm2)21.5 high-resolution color LCD monitor3)13.3anti-glare touch screen with multi-touch gesture capabilities and 30-degree rotation 4)Sliding keyboard with silicon cover5)Built-...

Product Parameters

Parameter Description
Product Name Mindray VENTUS 7 Veterinary Diagnostic Ultrasound System Precision and Portability Ultrasound Scanner
SKU PSKU0063
Size 2120*965*450-740mm
Packing Size of set 2090*1100*430mm (1 set per carton)
Loading capacity 250kg / 551lbs

Product Description

1.Specifications:

1)180-degree articulating monitor arm

2)21.5 high-resolution color LCD monitor

3)13.3anti-glare touch screen with multi-touch gesture capabilities and 30-degree rotation

4)Sliding keyboard with silicon cover

5)Built-in cable management

6)Hair proof wheel design with 360-degree rotation

7) Depth: 850±5mm

8)Width (main unit): 510±5mm

9)Width (monitor): 533±5mm
10)Height: 1190±5mm
11)Probe port and holder:
Probe ports: 4 active ports
Detachable probe holder: 6 as standard
12)Electrical power:
Voltage: 220-240V~
Frequency: 50/60Hz
Power consumption: Max. 630VA
13)Operating Environment:
Ambient temperature: 0-40°C
Relative humidity: 30%-85% (no
condensation)
Atmospheric pressure: 700hPa-1060hPa
14) Storage & Transportation Environment
Ambient temperature: -20-55°C
Relative humidity: 20%-95% (no
condensation)
Atmospheric pressure: 700hPa-1060hPa

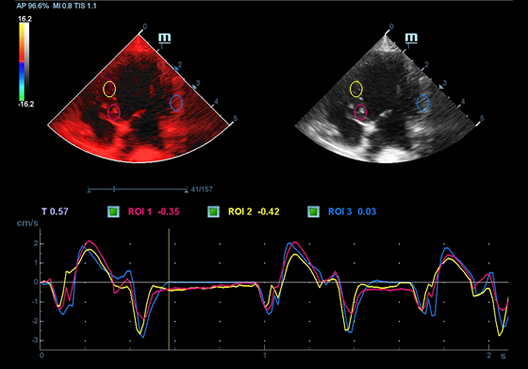

15)Imaging modes:
B-Mode
THI and PSHTM (Phase Shift Harmonic Imaging)
M-Mode/Color M-mode
Free Xros MTM (Anatomical M-mode)
Free Xros CMTM (Curved Anatomical M-mode)
Color Doppler Imaging
